Idro
Thermo-Fireplaces

Fire comes to life

THERMO-FIREPLACES FOR HEATING WATER

Designed for those who want to heat the whole house, they can also produce domestic hot water.They adapt perfectly to any type of home. They can be connected to any heating system and be equipped with a wood/pellet kit.

TWO VERSIONS, TWO TECHNOLOGIES

IDROPLUS TECHNOLOGY

Combustion chamber made of extra-thick carbon steel + CalorTECH
• Over 85% efficiency
• 2m² heat exchange surface
• 21 min from 20° to 60°
• up to 8 hours of autonomy with wood load

IDROSTAR TECHNOLOGY

Combustion chamber made of extra-thick carbon steel
• Over 80% efficiency
• 2.5m² heat exchange surface
• 19 min from 20° to 60°
• up to 7 hours of autonomy with wood load

OBTAIN BONUSES AND INCENTIVES

By purchasing Climacalor fireplaces you can recover part of the cost
thanks to the bonuses and incentives

FIND OUT HOW

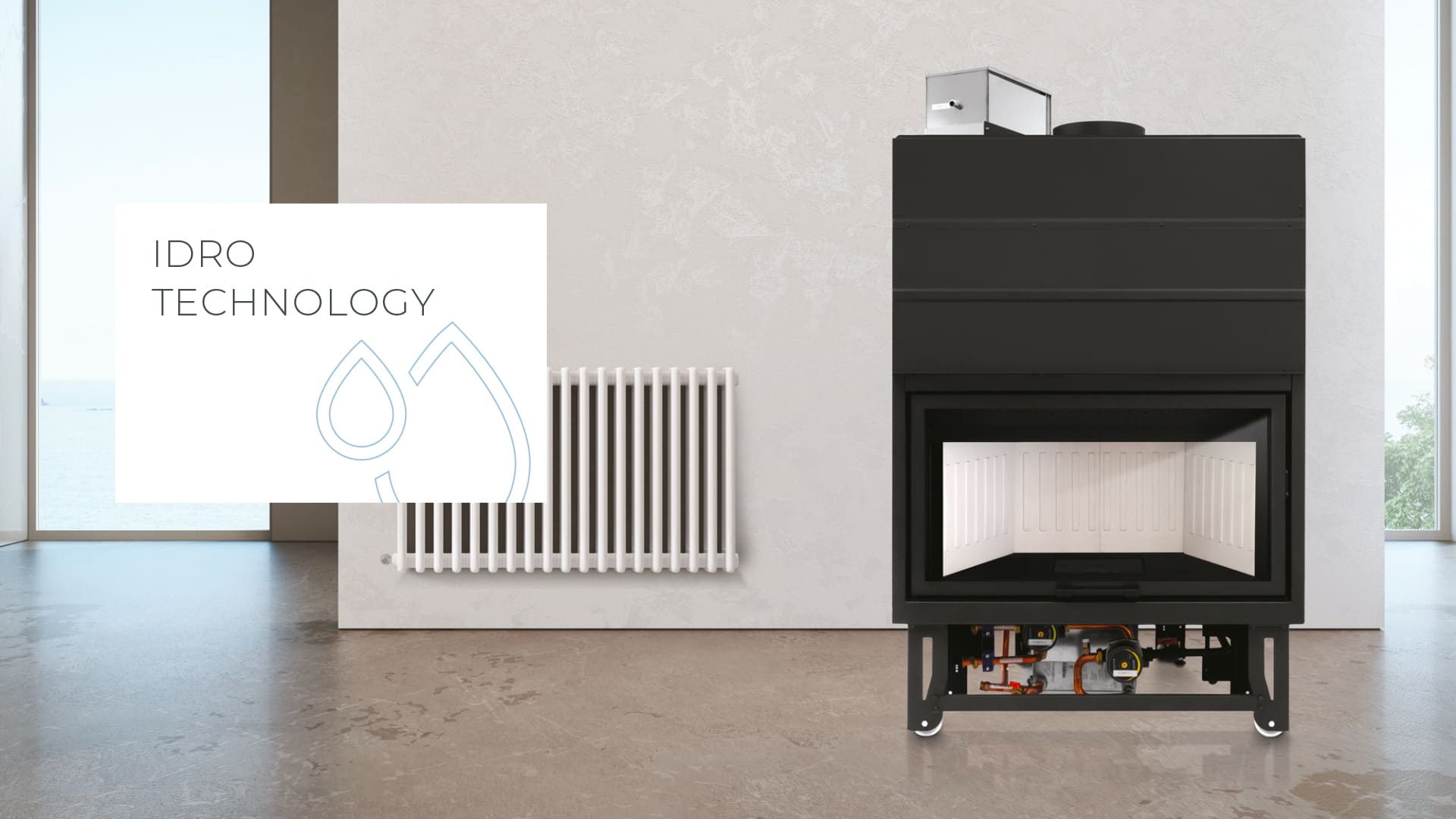

IDRO THERMO-FIREPLACES TECHNOLOGY

Constructed of high-strength carbon steel sheet, they have a full cavity structure. The up-and-over door with ceramic glass resistant to 750°C is fitted with special gaskets that guarantee an airtight seal: this guarantees safety near the fireplace, increases heat output and reduces consumption.

CalorLock door sliding system
A.C.S. ACQUAclima Kit for domestic hot water production
Cavity and fire bed containing water
Drawer with ash collection grid
Adjustable feet with wheels
Hydraulic kit accessible and inspectable from the fire bed
Sliding opening system with design handle and cold hand
combustion logbook CalorControl

CalorLock door sliding system
A.C.S. ACQUAclima Kit for domestic hot water production
Cavity and fire bed containing water
Drawer with ash collection grid
Adjustable feet with wheels
Hydraulic kit accessible and inspectable from the fire bed
Sliding opening system with design handle and cold hand
combustion logbook CalorControl

7 PUNTI DI FORZA

CalorDry

1 – The innovative operation, supported by the electronics of the ClimaCaloR thermoregulator, increases the performance and life of the thermo-fireplace by avoiding the formation of creosote inside the combustion chamber and the installation of expensive, complicated and difficult to configure additional components such as anti-condensation valves.

STRATIFICATION

2 – The ClimaCaloR thermo-fireplaces are equipped with a thermal stratification system whereby the high working vertical allows the hotter water to reach the heating system more quickly and the colder water to get closer to the parts in contact with the fire.

CATHODIC PROTECTION

3 – The symmetry of the internal circulation of the thermo-fireplace allows for the homogeneity of all the operating phases, thus improving performance, reducing maintenance and guaranteeing a longer life.

ADVANCED ELECTRONICS

4 – The ClimaCaloR thermoregulator is able to make it easy to use and to provide a high level of performance and product safety. ClimaCaloR has developed an intuitive and analytical interface capable of adapting to the needs of the heating system and the lifestyle of the customer who will use it.

EXCHANGE SURFACE

5 – The water container envelops the entire combustion chamber, creating a casing all around, ready to capture the greatest energy possible.

AUTONOMY UP TO 8 HOURS

6 – With a 20 kg load of wood, you can get up to 8 hours of heating autonomy. The CalorControl system is able to slow down combustion and distribute the wood consumption over a prolonged period of time and once the flame has faded, the embers, resting on the water-filled surface, will continue to provide energy, exponentially increasing the efficiency of the thermo-fireplace.

KIT AIRCLIMA KV

7 – The ClimaCaloR thermo-fireplace can also produce an enveloping flow of hot air to be released into the room. By choosing the optional AIRclima Kv kit which, without removing power from the hydro heating and exploiting additional heat from the outgoing fumes, adds up to 3 kW of extra power to the thermo-fireplace to which it is combined. The ventilation system managed by the digital control unit combines the constant heating of the water and the speed of the heat of the air, achieving truly extraordinary overall performance.

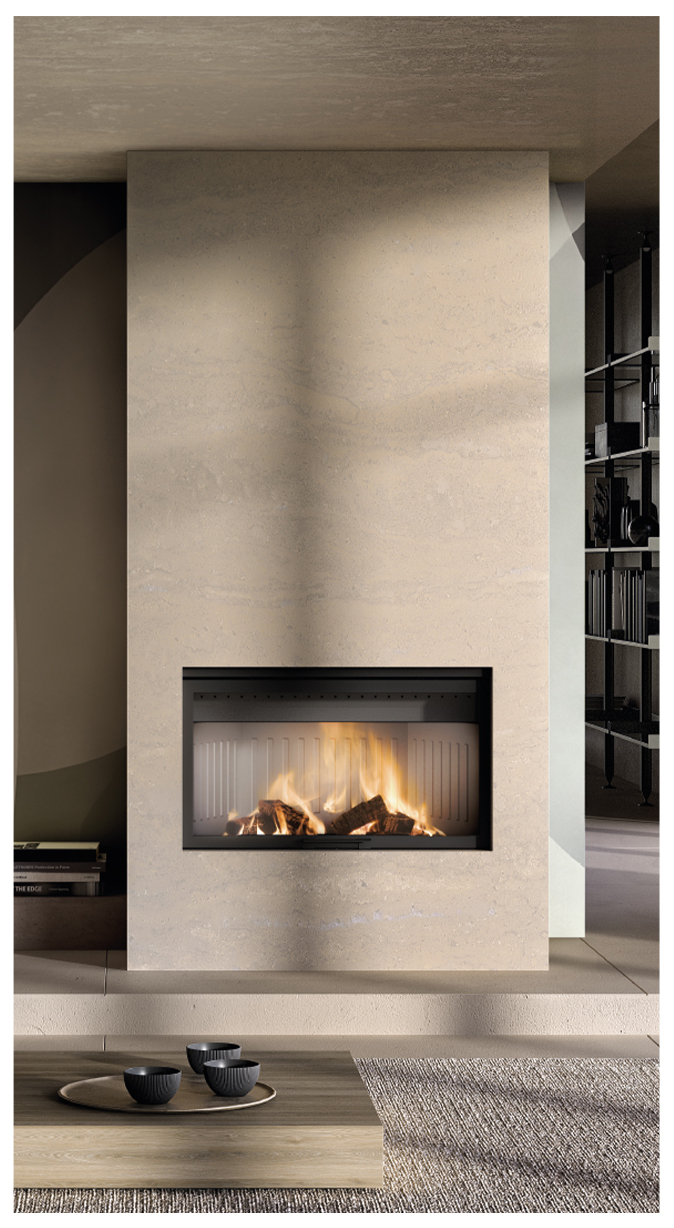

Idro 100

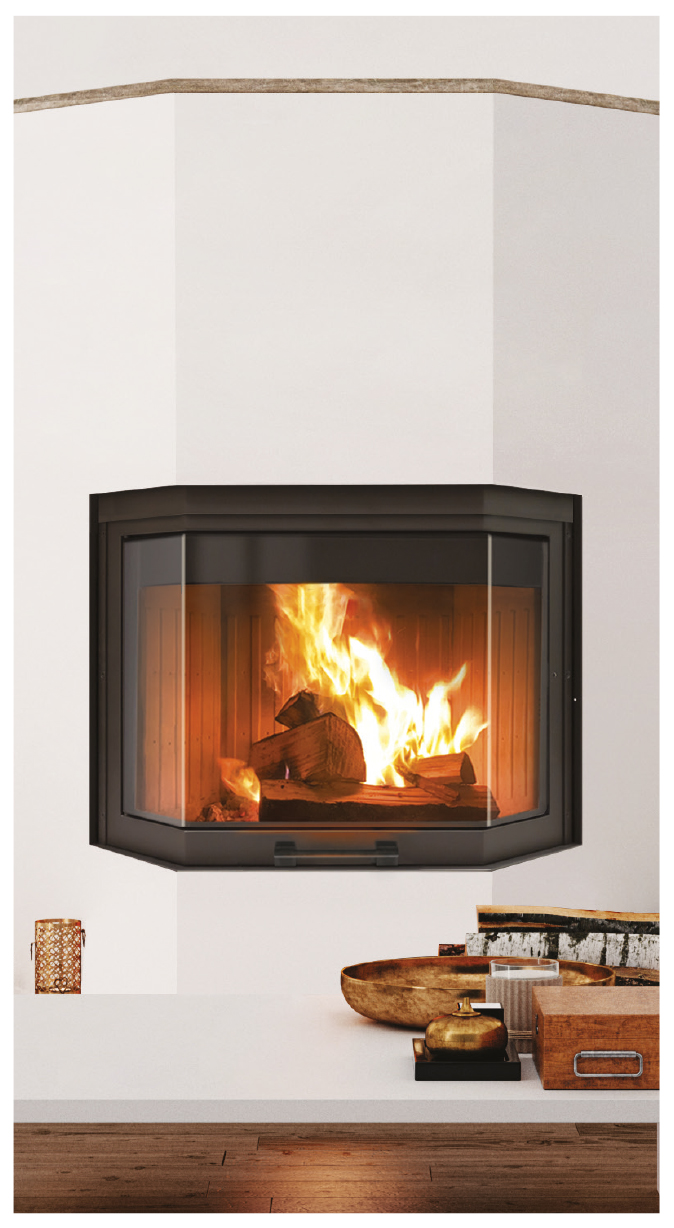

Idro 80

Idro 80

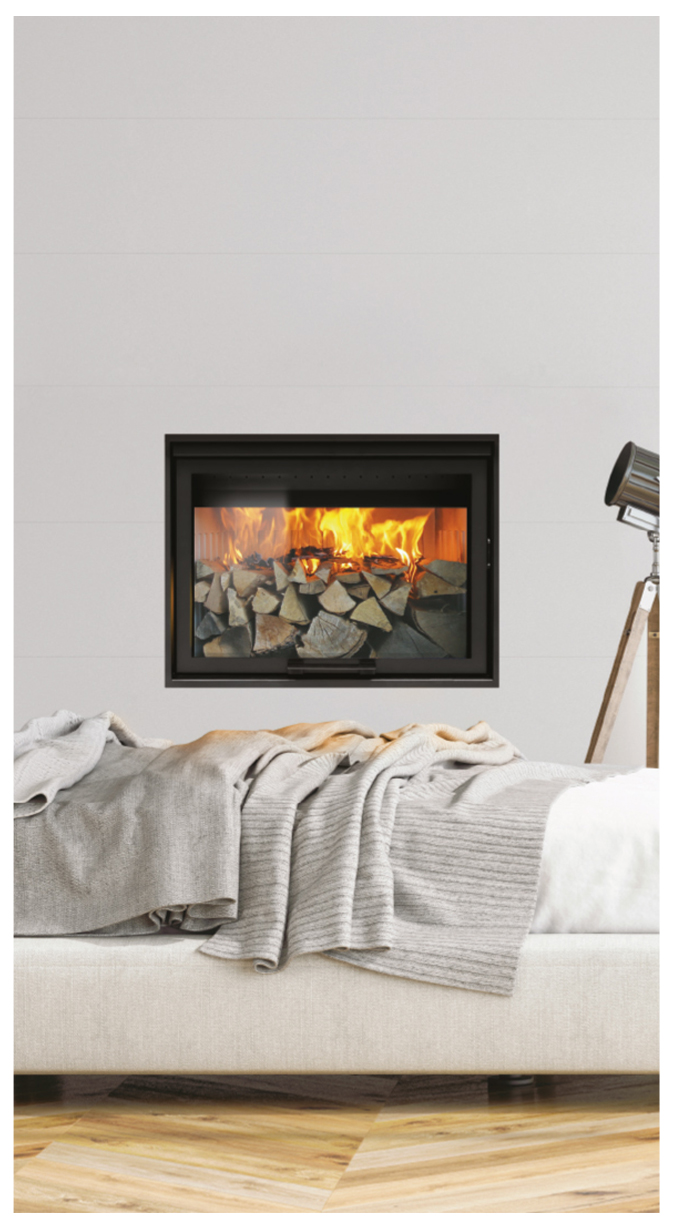

Idro 100

FIND OUT MORE ABOUT THE KITS THAT
CAN BE COMBINEDWITH IDRO THERMO-FIREPLACES

HYDRAULIC KITS

Allow the connection of the fireplace to any heating system.

WOOD/PELLET KITS

Designed for those who want to heat their homes continuously and independently.

AIRCLIMA KV

Ventilated system allows you to heat the room in which the fireplace is located quickly.

HYDRAULIC KITS

Allow the connection of the fireplace to any heating system.

WOOD/PELLET KITS

Designed for those who want to heat their homes continuously and independently.

AIRCLIMA KV

Ventilated system allows you to heat the room in which the fireplace is located quickly.

ACQUACLIMA

Allows you to produce 12L of hot water per minute, instant and ecological, keeping it hot for a long time.

EXPANSION TANK

Open expansion vessel kit 20 lt. Complete with loading system, float and copper pipes installed on the machine.

ACQUACLIMA

Allows you to produce 12L of hot water per minute, instant and ecological, keeping it hot for a long time.

EXPANSION TANK

Open expansion vessel kit 20 lt. Complete with loading system, float and copper pipes installed on the machine.

ACCESSORIES FOR IDRO THERMO-FIREPLACES

ACCESSORY DATA SHEET

MODULO KITCHEN
SOLUTIONS FOR COOKING
WITH FIRE

ClimaCaloR offers cooking accessories that can be matched to all its fireboxes and designed in particular for Modulo fireplaces. In fact, the refractory surface inside the combustion chamber, together with the strong steel structure, creates the ideal temperature and the perfect conditions for cooking food.
